CUSTOM PRODUCTION TOOLING

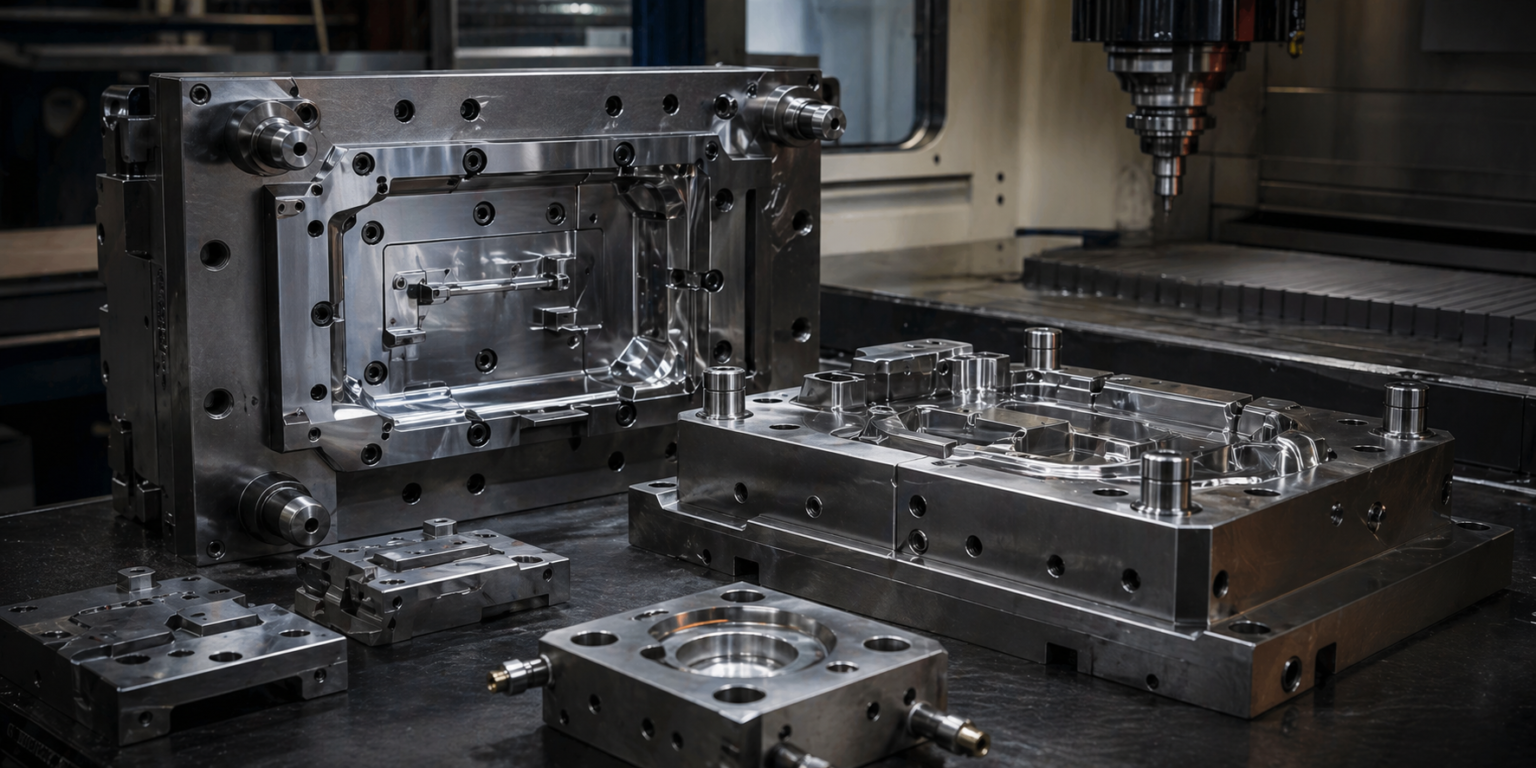

Custom Molds & Tooling
Custom molds and tooling developed for injection molding, die casting, metal stamping and OEM production programs. FSD Precision supports prototype tooling, production molds, tooling components, engineering review and production handoff based on customer drawings and project requirements.
TOOLING CATEGORIES
Tooling for Different Manufacturing Processes
Die Casting
Dies for alloy housings, structural components and OEM parts.
Metal Stamping
Dies for blanking, punching, forming and bending operations.
Prototype & Bridge Production
Tooling routes for validation, launch-stage production and lower-volume requirements.
TOOLING PRODUCTS
Molds & Tooling We Supply
FSD supports custom tooling for plastic molding, die casting, metal stamping and OEM production programs, with tooling routes reviewed according to part design, material, production requirements and project stage.
Injection Molds
Custom injection mold tooling for housings, structural plastic parts, insert molded components and other drawing-based plastic parts.
View Capability →
Die Casting Dies
Custom die casting dies for housings, structural castings and other drawing-based industrial components.
View Capability →
Stamping Dies
Custom stamping tooling for blanking, punching, forming and bending sheet metal components.
View Capability →
Prototype Tooling
Project-specific tooling for engineering validation, sample production and bridge manufacturing requirements.
Discuss This Tooling →
Production Tooling
Production tooling developed for repeat manufacturing programs according to part and production requirements.
Discuss This Tooling →
Mold Inserts & Tooling Components
Precision inserts and tooling components for mold build, replacement, modification and maintenance requirements.
View Capability →
INJECTION TOOLING

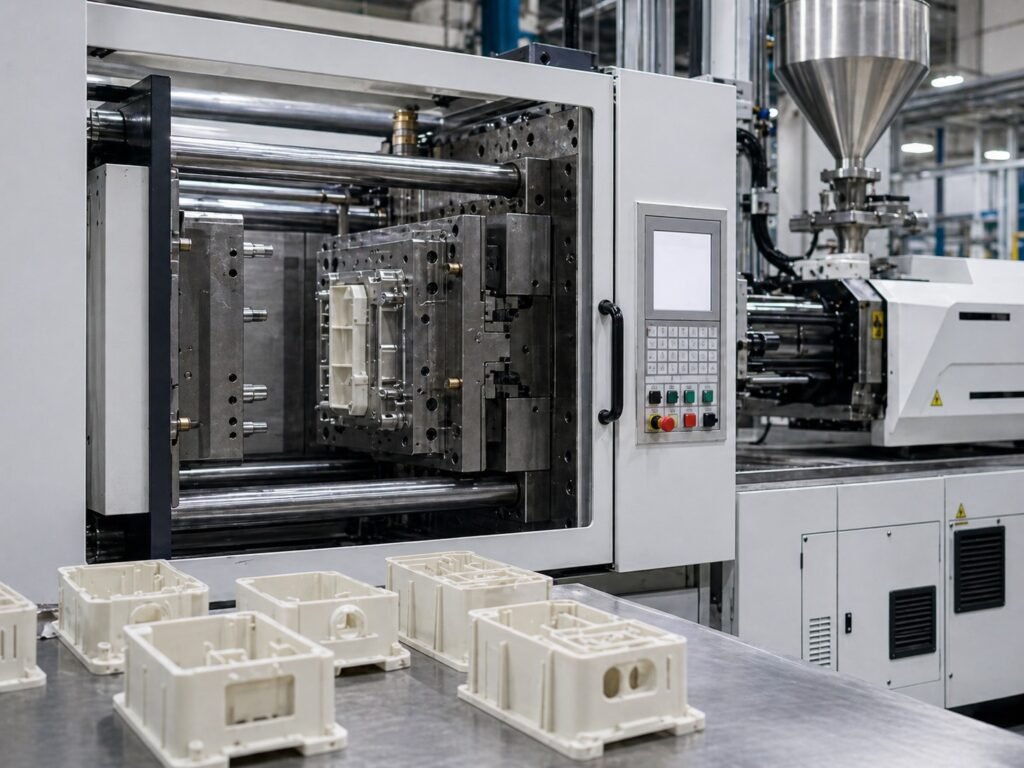

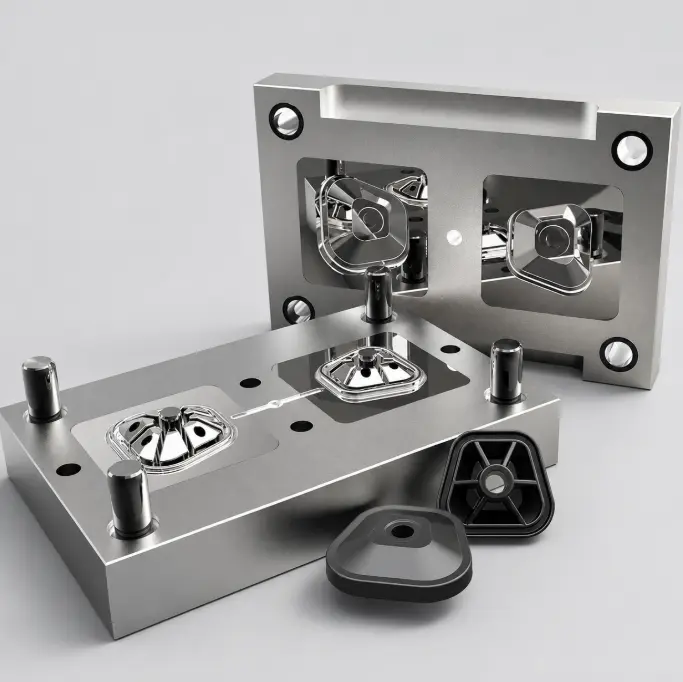

Injection Molds for Custom Plastic Parts
Injection mold tooling can be developed around part geometry, molding material, cosmetic requirements, inserts and expected production needs.
Single & Multi-Cavity Tools
Tool configurations reviewed according to part design and production requirements.
Insert Molding Tools
Tooling for suitable parts requiring integrated inserts or embedded hardware.
Overmolding Tools
Tooling concepts reviewed for suitable multi-material or overmolded designs.
Prototype & Production Molds
Tooling routes selected for validation and planned production needs.
DIE CASTING TOOLING

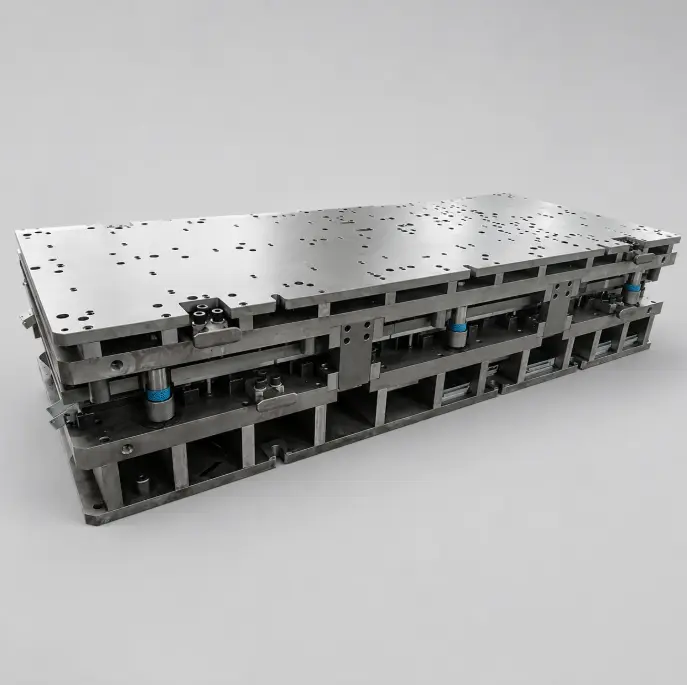

Die Casting Dies for Custom Metal Parts
Housing & Enclosure Dies
Tooling for die cast housings, covers and protective structures.
Structural Component Dies
Dies for brackets, frames and structural castings.
Thermal Component Tooling
Tooling for die cast components with thermal and structural features.
Production Die Casting Tools
Production tooling reviewed according to alloy, geometry and project requirements.

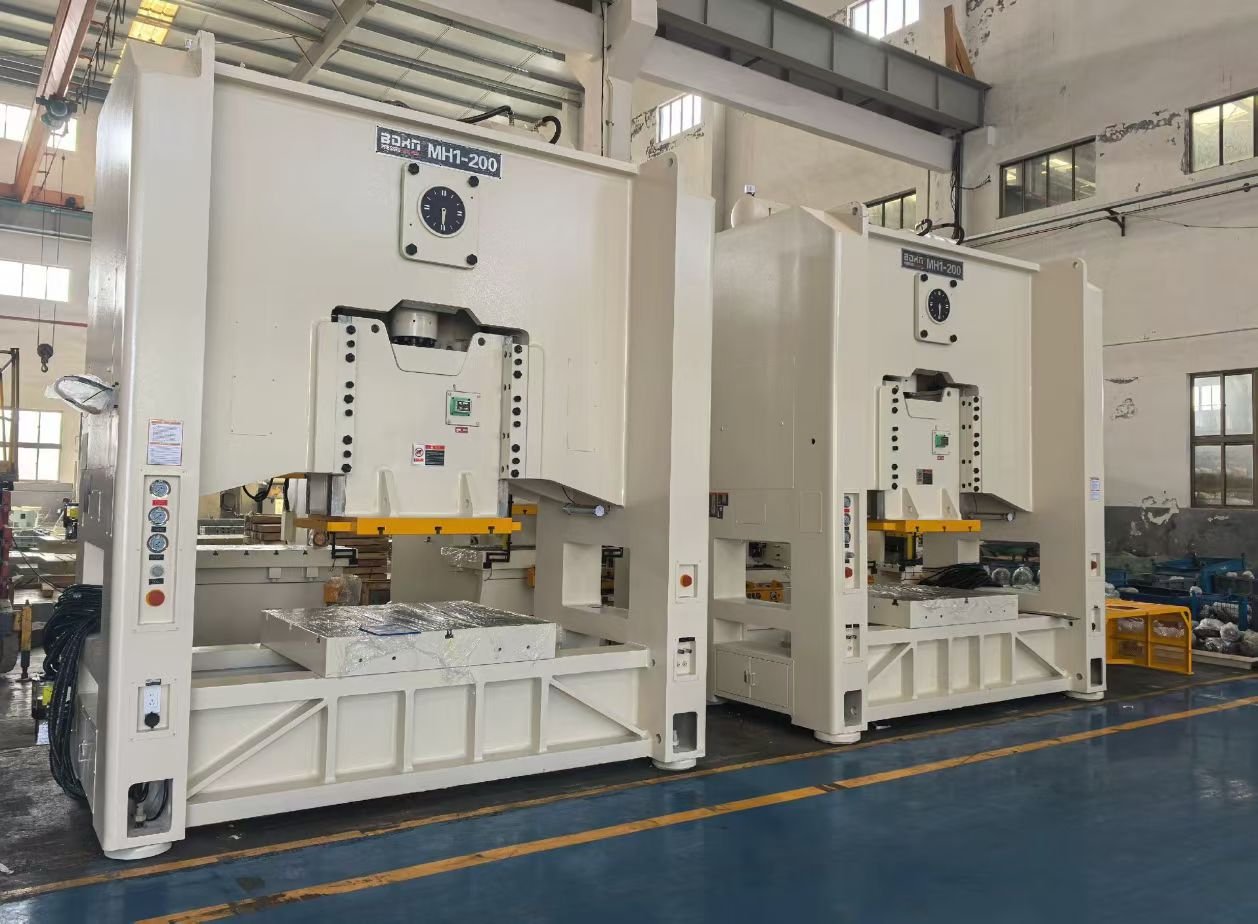

STAMPING TOOLING

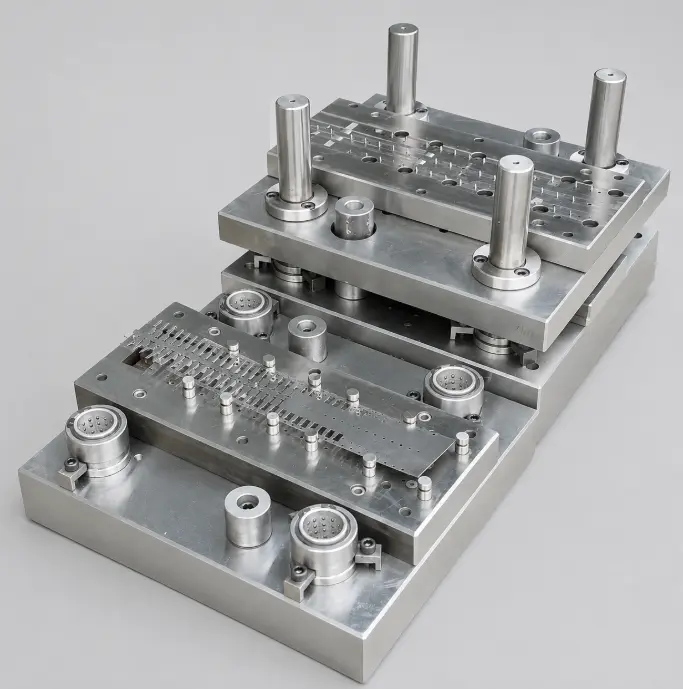

Stamping Dies & Forming Tooling
Blanking Dies
Tooling for cutting sheet or coil material into required profiles.
Punching Dies
Tooling for holes, openings and repeated stamped features.
Forming & Bending Dies
Tooling for bends, flanges and formed sheet metal geometry.
Custom Production Tooling
Tooling developed according to part drawings and production requirements.
TOOLING STRATEGY
Prototype Tooling vs. Production Tooling

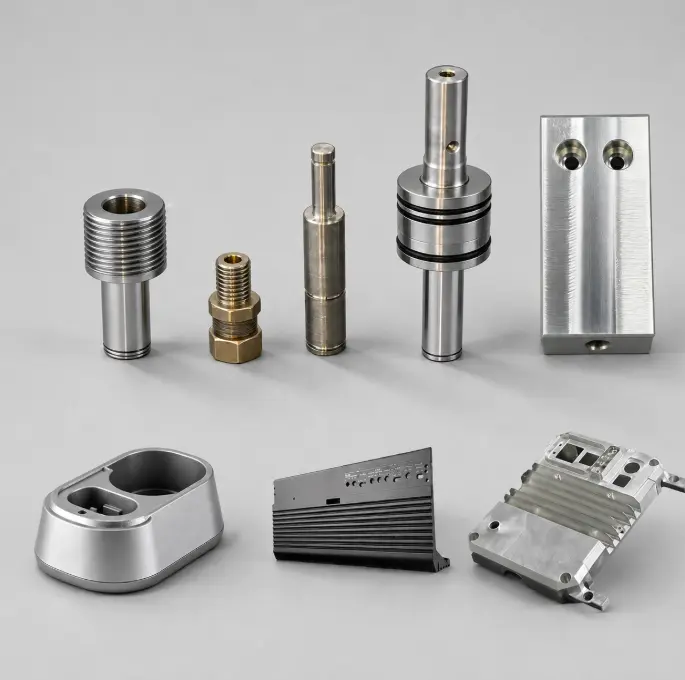

Prototype Tooling
Prototype tooling routes are reviewed according to part design, material, quantity and validation requirements.
- Design validation
- Engineering samples
- Bridge production
- Project-specific launch requirements

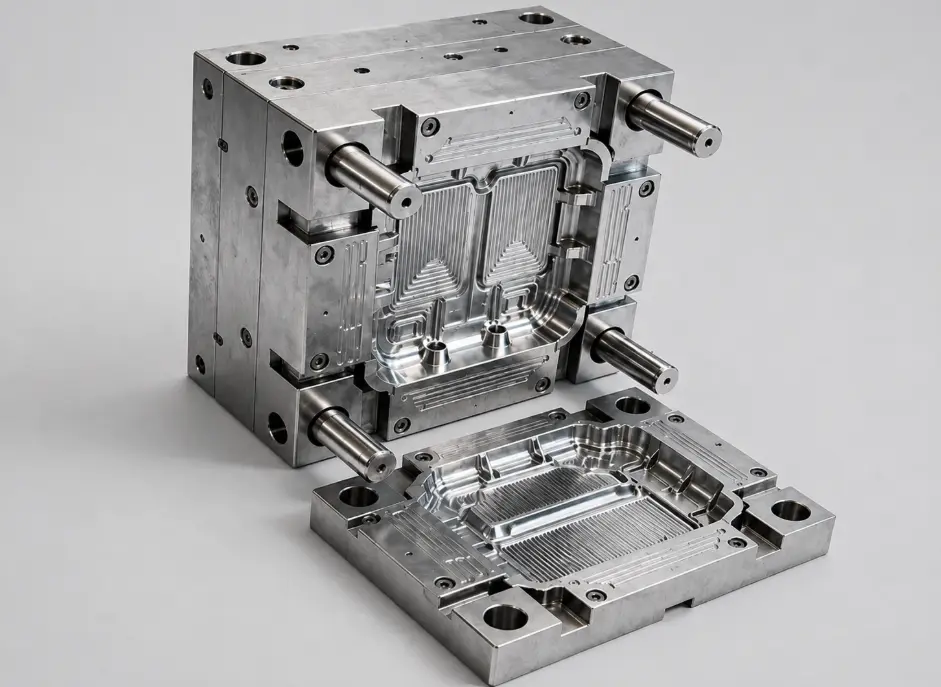

Production Tooling
Production tooling is developed according to approved part design, material, process and planned production requirements.
- Repeat production
- Stable OEM manufacturing programs
- Long-term production planning
- Production handoff requirements
TOOLING SUPPORT

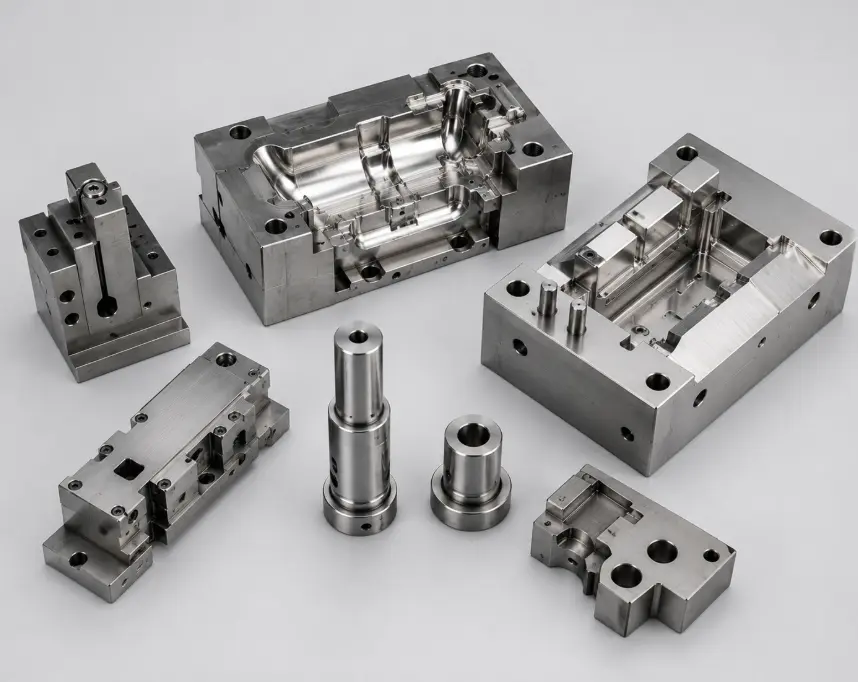

Precision Mold Inserts & Replacement Tooling Components
Cavity & Core Inserts
Precision inserts for mold cavities, cores and formed features.
Slides & Tooling Inserts
Custom tooling components for suitable mold and die assemblies.
Replacement Components
Replacement tooling components reviewed according to existing mold condition and technical information.
Tooling Modification Support
Tooling adjustments and modification requirements can be reviewed according to project needs.
MOLD TO PRODUCTION
From Tooling to Finished Parts
Tooling Development
Mold or die development according to customer drawings and project requirements.
Trial & Validation
Initial samples and tooling performance reviewed before production release.
Part Production
Injection molding, die casting or metal stamping coordinated according to the approved tooling route.
Secondary Manufacturing
CNC machining, surface finishing, inspection and assembly coordinated where required.
TOOLING VALIDATION

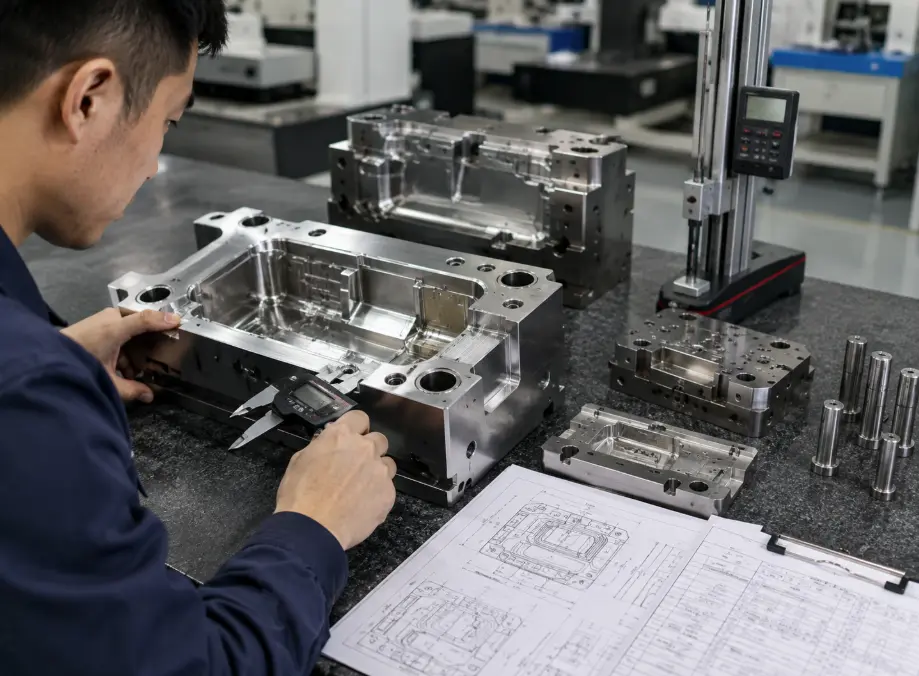

Tooling Review Before Production
Dimensional Inspection
Critical tooling and part dimensions can be checked according to drawings and approved requirements.
Tool Fit & Assembly Review
Tooling fit, movement and assembly condition are reviewed during tooling preparation.
Initial Sample Evaluation
Initial molded, cast or stamped samples can be reviewed against project requirements.
Adjustment Before Production Release
Tooling adjustments are completed as required before production approval.
APPLICATIONS
Molds & Tooling for Industrial Applications
Automotive & EV
Tooling support for vehicle components and EV-related assemblies.
Industrial Automation
Molds and dies for automation equipment and mechanical systems.
Electronics & Communication
Tooling for housings, shielding and connector-related parts.
Power Electronics & Energy
Tooling for protective housings, thermal parts and energy assemblies.
Medical Equipment
Tooling can be reviewed for suitable equipment components.
Industrial Machinery
Custom tooling for machinery parts, covers and brackets.
FAQ
Molds & Tooling FAQs
Common questions for buyers reviewing custom molds, dies and tooling support.
What types of molds and tooling can FSD supply?
FSD can review tooling requirements for injection molding, die casting, metal stamping, prototype programs, production tooling and precision tooling components according to project requirements.
Can FSD manufacture both the tooling and the finished parts?
Yes. Depending on the project, tooling can be coordinated with injection molding, die casting, stamping, CNC machining, surface finishing, inspection and assembly requirements.
What files are required for a tooling quote?
STEP, STP, IGES, X_T, DWG, DXF and PDF files can be used for engineering review. A 3D model together with a 2D drawing is recommended when the project includes critical dimensions, material requirements or tooling-specific specifications.
Do you support prototype tooling?
Prototype and bridge tooling requirements can be reviewed according to part design, material, expected quantity and validation requirements.
Can existing molds or tooling be modified?
FSD can review tooling modification, insert replacement and adjustment requirements based on the condition of the existing tool and available technical information.
Can molds be delivered for production at the customer's facility?
Tooling delivery and production handoff can be reviewed according to the project, destination and customer production requirements.
RFQ REVIEW
Need a Custom Mold or Production Tool?
Send us your 3D models, 2D drawings, part material, expected production volume and tooling requirements for engineering review and quotation.
