01
Prototype Works, but Production Route Is Unclear
The sample may meet basic requirements, but the process may not be suitable for repeat production.
NPI Verification Support
Prototype to Production
Sample validation, process review, inspection planning, and small-batch production support for OEM metal and plastic parts before repeat manufacturing.
Prototype Validation
Sample review + inspection release
Sample review
Dimensional inspection
Process planning
Trial batch
Validation
Why Prototype Validation Matters
A prototype may confirm the basic shape and function of a part, but it does not always prove that the design is ready for repeat production.
Before moving to batch production, OEM buyers need to review material behavior, critical dimensions, assembly fit, surface finish, tooling risks, inspection methods, and production stability.
Validation Review Bench
Challenges
Common Validation Challenges
Without a structured validation process, sample issues can become production delays, tooling changes, quality problems, or repeat-order risks.
Validation Risk Review
02
Tolerance or Assembly Issues Appear Late
Critical holes, threads, sealing surfaces, and mounting areas may need additional review before batch production.
03
Surface Finish Does Not Match the Final Application
Appearance, corrosion resistance, conductivity, or wear requirements may need to be confirmed before production.
04
Tooling or Process Risks Are Not Confirmed
Prototype results may reveal risks related to tooling, machining allowance, shrinkage, or forming stability.
05
Small-Batch Production Lacks Inspection Standards
Without clear inspection criteria, repeat production may become inconsistent.
06
Multiple Suppliers Create Communication Gaps
If prototyping, finishing, inspection, and production are handled separately, communication and quality risks increase.
Workflow
FSD Prototype-to-Production Workflow
Prototype-to-Production Workflow
Step 1
Prototype / Sample Review
Review samples, drawings, material requirements, surface finish, quantity, tolerance needs, and application conditions.
Step 2
Engineering Feedback
Identify manufacturability risks, tolerance concerns, assembly-fit issues, tooling risks, and surface finishing limitations.
Step 3
Process Route Adjustment
Adjust or confirm the manufacturing route, including CNC machining, die casting, injection molding, stamping, mold manufacturing, or surface finishing.
Step 4
Inspection Requirement Confirmation
Define key dimensions, surface checks, assembly areas, CMM or 2.5D inspection needs, and report requirements.
Step 5
Small-Batch Trial Production
Support limited production runs to validate consistency, process stability, finishing results, and inspection standards.
Step 6
Repeat Production Preparation
Prepare the confirmed production route, quality checkpoints, finishing plan, and delivery coordination for repeat orders.
Validation Scope
What FSD Validates Before Production
Pre-Production Validation Scope
Manufacturing Advisory
Material selection review
Process route review
Tolerance and machining allowance review
Surface finish feasibility
Sample & Testing Review
Sample dimension review
Assembly-fit check
Surface finish check
Functional area review
Correction feedback
Production Readiness Review
Small-batch production planning
Inspection standard confirmation
Production consistency review
Repeat order preparation
Trial Production
Small-Batch Trial Production Support
Small-batch trial production helps confirm whether the manufacturing process, tooling, finishing, inspection method, and delivery requirements are ready for repeat production.
Small-Batch Trial Production
01
Limited production run support
02
Process stability review
03
Surface finish confirmation
04
Inspection standard setup
05
Feedback for process adjustment
06
Preparation for repeat production
Capabilities
Manufacturing Capabilities Used in Prototype-to-Production Projects
Manufacturing Capability Route
CNC Machining
Prototype machining, post-machining, and precision feature validation.

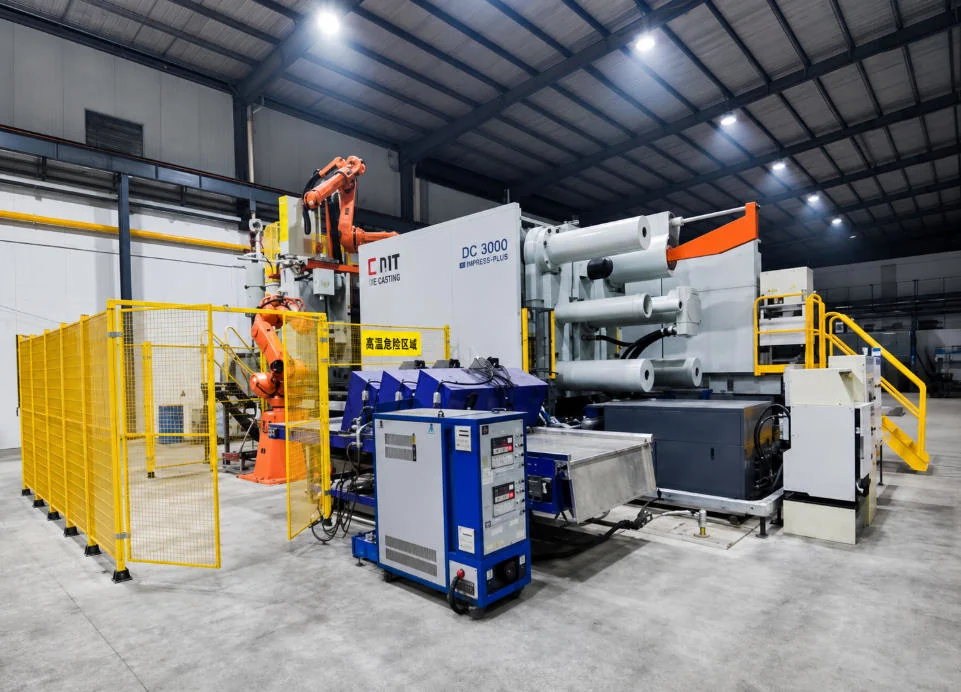

Die Casting
Cast part validation, machining allowance review, and batch production planning.
Injection Molding
Mold trial feedback, material behavior review, and molded part validation.
Stamping
Formed metal part review, bend accuracy checks, and trial production support.
Mold Manufacturing
Tooling correction feedback, trial planning, and production handoff support.
Surface Finishing
Finish confirmation for appearance, protection, conductivity, or wear requirements.
Inspection
Quality & Inspection Support
Validation before production requires clear inspection points, dimensional checks, surface evaluation, and report requirements.
Inspection Report Review
01
Dimensional Inspection
02
CMM Inspection When Required
03
2.5D Measurement
04
Surface Finish Inspection
05
Material Verification
06
Inspection Reports Upon Request
Project Scenarios
Typical Project Scenarios
Die Cast Aluminum Housing Validation
CNC-machined sealing surfaces, threaded holes, coating confirmation, and inspection before batch production.
Plastic Connector Housing Validation
Injection mold trial, material behavior review, assembly-fit check, and appearance surface inspection.
Stamped Metal Bracket Validation
Material thickness review, bending accuracy, surface treatment, and trial production consistency check.
FAQ
Prototype to Production FAQ
Common questions buyers ask before moving from sample validation into small-batch or repeat production.
Why is prototype validation important before production?
Prototype validation helps confirm dimensions, material behavior, assembly fit, surface finish, process stability, and inspection requirements before repeat production starts.
Can FSD support small-batch trial production?
Yes. FSD can support limited production runs to validate process stability, finishing results, dimensional consistency, and inspection requirements before repeat production.
What should buyers provide for sample validation?
Buyers can provide samples, 2D drawings, 3D models, material requirements, quantity, tolerance needs, surface finish requirements, testing feedback, and application details.
Can FSD help adjust the manufacturing route after prototype review?
Yes. FSD can review prototype feedback and suggest process adjustments such as CNC machining, die casting, injection molding, stamping, mold correction, or surface finishing changes.
Can FSD provide inspection reports before repeat production?
Inspection reports can be provided upon request, depending on the project requirements, key dimensions, inspection methods, and quality documentation needs.
Next Step
Ready to move from prototype to production?
Send your drawings, samples, validation feedback, material requirements, quantity, tolerance needs, and surface finish requirements. FSD Precision will review your project and help prepare a suitable production route.
