OEM Manufacturing Quality Control Guide: Inspection, Reports & Process Assurance
FSD Precision controls manufacturing quality through engineering review, material verification, process monitoring, dimensional inspection and final documentation.
Dimensional InspectionMaterial TraceabilityFAI SupportQuality Documentation
CMM InspectionQuality ReportsTraceabilityDelivery Assurance
Quick Answer
How Does FSD Ensure Manufacturing Quality?
Quality is controlled throughout the manufacturing process, not only checked after production. Quality control is planned from engineering review through material traceability, process control, inspection, documentation and delivery verification.
Material Verification
Process Control
Inspection
Documentation
Delivery Verification
Quality Control Workflow
Manufacturing Quality Control Workflow
Each stage reduces risk before parts move to the next manufacturing or delivery step.
Engineering Review
01Check drawing requirements, critical dimensions, tolerance requirements and manufacturing feasibility.
- Drawing Requirements
- Critical Dimensions
- Tolerance Requirements
- Manufacturing Feasibility
- Quality Evidence: Drawing Review Record
Material Verification
02Confirm material grade, supplier documentation and certification requirements before production.
- Material Grade
- Supplier Documentation
- Certification Requirements
- Quality Evidence: Material Documentation
In-Process Quality Control
03Use first article checks and production monitoring to reduce process variation.
- First Article Inspection
- Key Dimensions
- Process Stability
- Quality Evidence: Process Monitoring Record
Inspection
04Verify dimensions with suitable inspection methods based on drawing requirements.
- CMM
- Vision Measurement
- Calipers
- Micrometers
- Quality Evidence: Measurement Data
Surface Inspection
05Review functional and cosmetic surface requirements before shipment.
- Surface Finish
- Color
- Coating
- Cosmetic Requirements
- Quality Evidence: Appearance Verification
Final Delivery
06Confirm reports, packaging and shipment approval before delivery.
- Inspection Report
- Packing Confirmation
- Shipment Approval
- Quality Evidence: Inspection Report
Material Traceability
Material Traceability & Compliance
Traceability connects material documentation, production records and final quality evidence. Documentation examples may include material certificates, MTC records, RoHS compliance and REACH compliance when required by the project.
Raw Material
Material grade and incoming requirements confirmed.
Supplier Certificate
Supplier documentation reviewed when required.
Material Verification
Material identity and project requirement alignment checked.
Production Record
Process route and batch information documented.
Final Documentation
Records prepared based on agreed quality scope.
Material Certificate SampleMTC ExampleBatch Record ExampleFinal DocumentationRoHS / REACH when required
Inspection Capabilities
Inspection Capability Matrix
Inspection methods are selected according to part geometry, tolerance, surface requirement and project risk.
| Method | Purpose | Application | Inspection Level |
|---|---|---|---|
| CMM Inspection | Dimensional Verification | Critical Machining Components | High Precision |
| Vision Measurement | Profile Inspection | Small Components | Visual + Dimensional |
| Surface Measurement | Finish Verification | Cosmetic Components | Surface Control |
| Manual Measurement | Production Checking | Batch Production | Routine Verification |
Inspection Report
- Dimension Results
- Measurement Data
- Critical Dimensions
FAI Report
- First Article Data
- Production Validation
Material Certificate
- Material Grade
- Traceability Information
Surface Inspection Report
- Roughness
- Appearance
- Coating Verification
Manufacturing Risk Matrix
Process-Specific Quality Control Matrix
Different manufacturing processes require different controls to prevent common quality risks.
| Process | Customer Risk | Common Risk | Quality Control Method | Prevention | Quality Output |
|---|---|---|---|---|---|
| CNC Machining | Assembly Failure | Tolerance Variation | CMM Inspection | Tool Wear Monitoring | Dimensional Report |
| Die Casting | Structural Failure | Porosity / Shrinkage | Dimensional Inspection | Process Parameter Control | Inspection Record |
| Injection Molding | Appearance Issues | Warping / Sink Marks | Visual + Dimensional Inspection | Process Optimization | Quality Verification |
| Metal Stamping | Fit Risk | Burr / Springback | Dimensional Check | Tooling Adjustment | Inspection Result |
Inspection Standards
Inspection Standards & Sampling Plans
Inspection level should match part criticality, production volume and customer requirements. The inspection scope is defined by drawing risk and agreed project requirements rather than unsupported certification claims.
Critical Features
100% inspection can be used when dimensions directly affect fit, assembly or function.
Production Parts
Sampling inspection can be used for production batches when sampling is appropriate.
Custom Projects
Customer-defined inspection protocols can be agreed before production based on project requirements.
Inspection Examples
Real Inspection Examples
Inspection requirements depend on product, material, process and quality focus.
CNC Housing

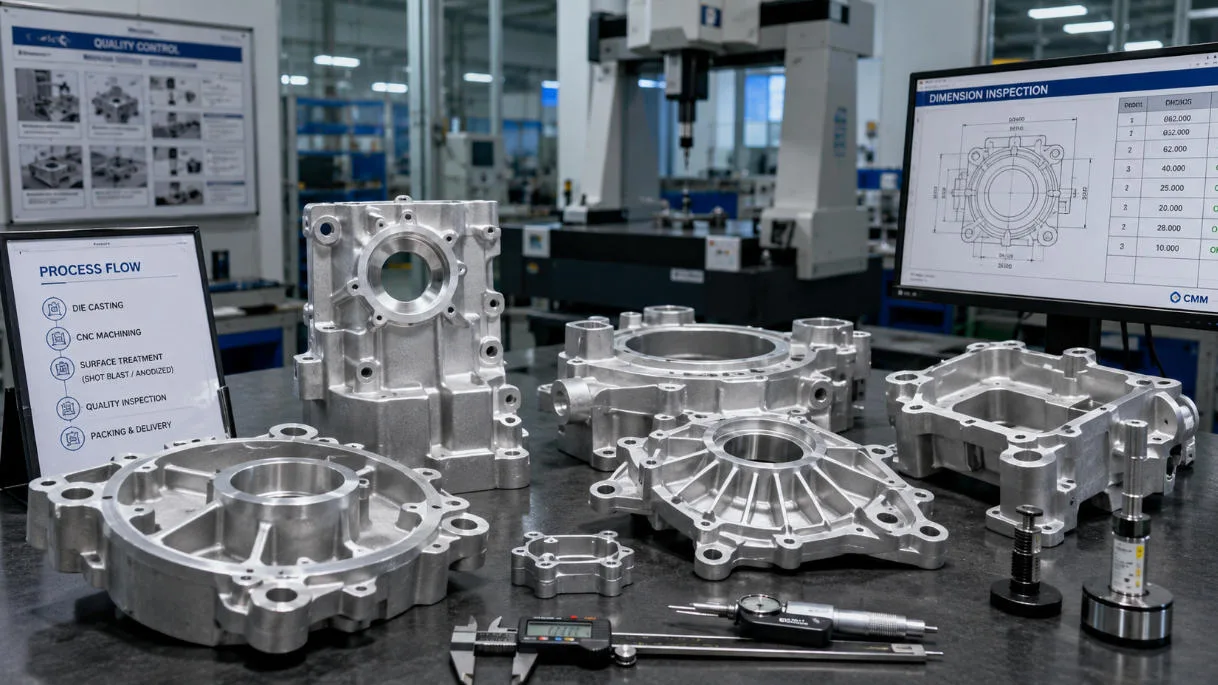

Die Cast Housing

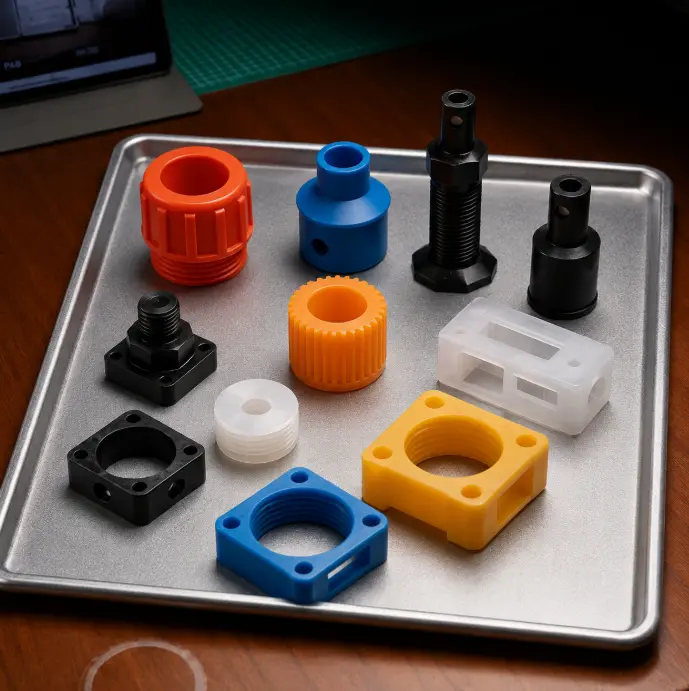

Plastic Housing
Quality Topic Cluster
Related Quality & Manufacturing Resources
Continue from quality planning into engineering review and process-specific manufacturing guidance.
FAQ
Quality Control Guide FAQ
What quality inspections does FSD provide?
FSD supports dimensional inspection, CMM inspection, visual inspection, surface finish review, material verification and final documentation for OEM manufacturing projects.
Does FSD provide CMM reports?
Yes. CMM reports can be provided for precision components when dimensional verification is required, especially for critical mounting features and tight tolerance parts. See the CNC Machining Guide ->
Can FSD support FAI?
FSD can support first article inspection for production validation when the project requires dimensional confirmation before batch production.
How does FSD control manufacturing quality?
FSD controls quality through engineering review, material verification, process control, in-process checks, dimensional inspection, surface review and final documentation.
What quality documents are available?
Available documents may include inspection reports, dimensional measurement data, FAI reports, material certificates and surface inspection records.
How are materials verified?
Materials can be verified through material grade confirmation, supplier documentation, material certificates, production records and final documentation.
Can FSD inspect surface finishes?
Yes. Surface finishes can be reviewed for appearance, color, coating, roughness and cosmetic requirements based on drawing notes and customer acceptance criteria. See the Surface Finishing Guide ->
How does FSD ensure batch consistency?
Batch consistency is supported through engineering review, process control, first article checks, production sampling, critical dimension inspection and final verification. For early review, use Engineering RFQ Review ->
