Aluminum die casting is a widely used manufacturing solution for producing lightweight, durable and repeatable metal components for OEM applications.
Engineers typically choose aluminum die casting when their products require:
- High strength-to-weight ratio
- Good thermal performance
- Corrosion resistance
- Complex near-net-shape geometries
- Consistent production quality
Compared with machining aluminum from solid billet, aluminum die casting provides higher material efficiency and lower piece costs for medium and high-volume production programs.
However, successful aluminum die casting requires more than selecting the correct alloy.
A reliable manufacturing solution also depends on:
- Proper part design
- Tooling strategy
- DFM evaluation
- CNC post-machining planning
- Surface finishing requirements
FSD Precision provides Aluminum Die Casting Services with integrated engineering support, tooling coordination, CNC machining, surface finishing and quality inspection.
Explore our complete Die Casting Manufacturing Solutions for OEM metal components.
Aluminum Die Casting Process Overview
The aluminum die casting process uses high pressure to inject molten aluminum alloy into a precision steel mold cavity.
The typical production workflow includes:
1. Mold Preparation
Engineers prepare the tooling based on:
- Part geometry
- Production requirements
- Cooling design
- Ejection requirements
2. Aluminum Injection
Molten aluminum alloy is injected into the mold under controlled pressure and temperature.
Proper control of:
- Injection speed
- Metal flow
- Cooling conditions
helps reduce casting defects.
3. Cooling and Ejection
After solidification, the casting is removed from the mold and prepared for secondary operations.
4. Secondary Processing
Depending on customer requirements, parts may go through:
- Trimming
- CNC machining
- Surface finishing
- Inspection
Why OEMs Choose Aluminum Die Casting Parts
Aluminum remains one of the most commonly selected materials in high-pressure die casting because it provides a strong balance between performance, manufacturability and cost.
Lightweight Performance
One of the biggest advantages of aluminum die casting is weight reduction.
For industries focused on lightweight design, aluminum provides:
- Lower component weight
- Good structural performance
- Improved product efficiency
Common applications include:
- Automotive components
- EV parts
- Robotics structures
- Electronics housings
Strength and Structural Performance
Aluminum die cast parts provide reliable mechanical performance while maintaining lightweight characteristics.
Typical applications include:
- Motor housings
- Structural brackets
- Industrial equipment components
- Mechanical supports
For OEM products requiring strength and weight optimization, aluminum die casting is often an effective manufacturing choice.
Thermal Performance
Aluminum provides excellent thermal performance, making it suitable for components requiring heat dissipation.
Typical applications include:
- LED housings
- Heat sinks
- Power electronics enclosures
- Motor controller housings
Corrosion Resistance
Aluminum naturally forms a protective oxide layer that improves corrosion resistance in many environments.
This makes aluminum die casting suitable for:
- Automotive applications
- Outdoor equipment
- Industrial machinery
Common Aluminum Die Casting Applications
Aluminum die casting is widely used across industries requiring lightweight, durable and repeatable components.
| Industry | Typical Components | Key Requirements |
|---|---|---|
| Automotive & EV | Motor housings, battery brackets, transmission covers | Weight reduction, structural strength |
| Electronics & Telecom | LED housings, communication enclosures, power supply cases | Thermal management, protection |
| Industrial Equipment | Valve bodies, actuator housings, machine covers | Stability, durability |
| Robotics & Automation | Robot brackets, structural frames | Lightweight rigidity |
Common Aluminum Die Casting Alloys
Selecting the correct aluminum alloy directly affects:
- Casting performance
- Mechanical properties
- Surface finishing
- Production cost
A380 Aluminum Alloy
Best For:
General OEM aluminum die casting applications.
Advantages:
- Good castability
- Balanced mechanical properties
- Reliable production performance
Typical Applications:
- Motor housings
- Brackets
- Electronics cases
ADC12 Aluminum Alloy
Best For:
Complex geometries and high-volume production.
Advantages:
- Excellent fluidity
- Good mold filling capability
- Cost-effective
Typical Applications:
- Covers
- Thin housings
- Structural components
A360 Aluminum Alloy
Best For:
Applications requiring corrosion resistance and pressure tightness.
Advantages:
- Good corrosion resistance
- Reliable sealing performance
Typical Applications:
- Hydraulic components
- Industrial housings
Aluminum Die Casting vs Aluminum CNC Machining
OEM buyers often compare aluminum die casting with CNC machining when selecting a manufacturing method.
| Feature | Aluminum Die Casting | Aluminum CNC Machining |
|---|---|---|
| Production volume | Medium/high volume | Prototype and low-volume |
| Tooling | Requires mold tooling | No dedicated mold |
| Unit cost | Lower at scale | Higher for large quantities |
| Material efficiency | Near-net-shape process | More material removal |
| Design changes | More difficult after tooling | Easy CAD updates |
| Best application | Stable production parts | Custom precision components |
For low-volume projects or frequent design changes, CNC machining may be more practical.
For stable production programs, aluminum die casting can provide significant cost advantages.
Learn more about:
Aluminum Die Casting Design Considerations (DFM)
Good design is essential for achieving stable production quality.
Key considerations include:
Uniform Wall Thickness
Consistent wall thickness helps:
- Improve metal flow
- Reduce shrinkage risks
- Improve dimensional stability
Draft Angles
Proper draft angles help:
- Improve mold release
- Reduce tooling wear
- Increase production efficiency
Ribs and Fillets
Ribs improve stiffness without unnecessary material increase.
Fillets help:
- Improve metal flow
- Reduce stress concentration
- Improve part reliability
For detailed engineering recommendations, review our:
Aluminum Die Casting Tooling Considerations
Tooling strategy directly affects:
- Production cost
- Part consistency
- Mold life
- Manufacturing stability
Important considerations include:
- Mold complexity
- Number of cavities
- Cooling system design
- Expected production volume
A proper tooling strategy helps OEM customers achieve stable long-term production.

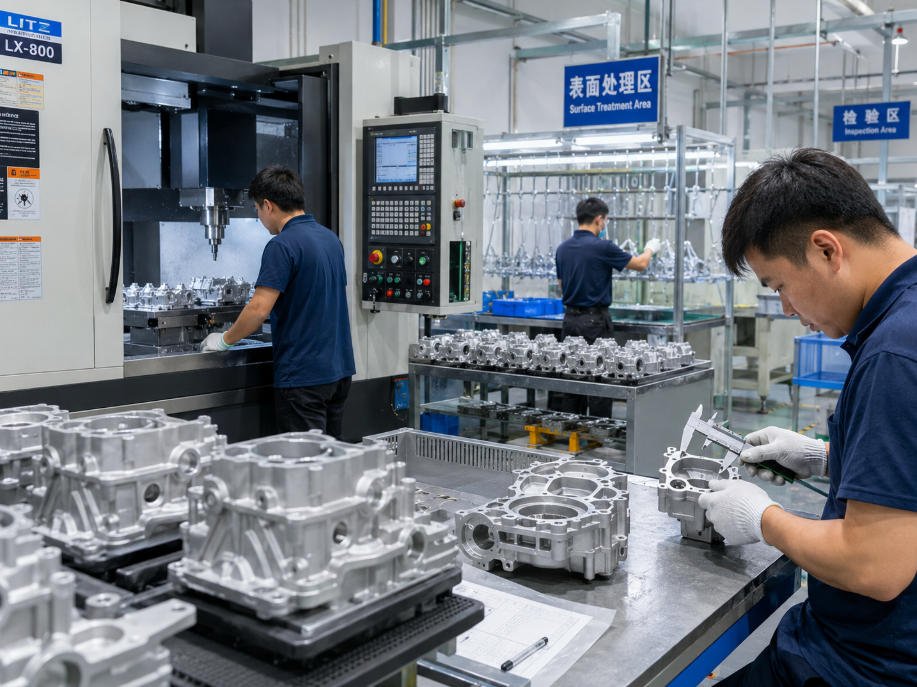

CNC Post-Machining and Surface Finishing
Many aluminum die casting parts require additional machining and finishing after casting.
Die casting creates the overall component geometry efficiently, while CNC machining completes critical functional features.
Common CNC operations include:
- Precision holes
- Threads
- Bearing surfaces
- Assembly interfaces
FSD Precision combines aluminum die casting with:
to deliver finished OEM components.
Surface Finishing Options
Common aluminum die casting finishing options include:
Powder Coating
Provides:
- Corrosion protection
- Color customization
- Improved durability
Painting
Used for:
- Appearance requirements
- Branding
- Protective coatings
Sand Blasting
Provides:
- Uniform texture
- Surface preparation
Anodizing Considerations
Some aluminum die casting alloys contain higher silicon content, which may affect decorative anodizing appearance.
For cosmetic applications, alloy selection should be evaluated before production.
Learn more about:
How to Choose an Aluminum Die Casting Manufacturer
Selecting the right aluminum die casting supplier requires more than checking production equipment.
OEM buyers should evaluate:
Engineering Support
A capable supplier should provide:
- DFM review
- Material recommendations
- Manufacturing suggestions
Tooling Capability
Important factors include:
- Mold design experience
- Tool maintenance
- Production support
Secondary Processing Capability
Many aluminum die casting parts require:
- CNC machining
- Drilling
- Tapping
- Surface finishing
An integrated supplier can simplify communication and improve quality control.

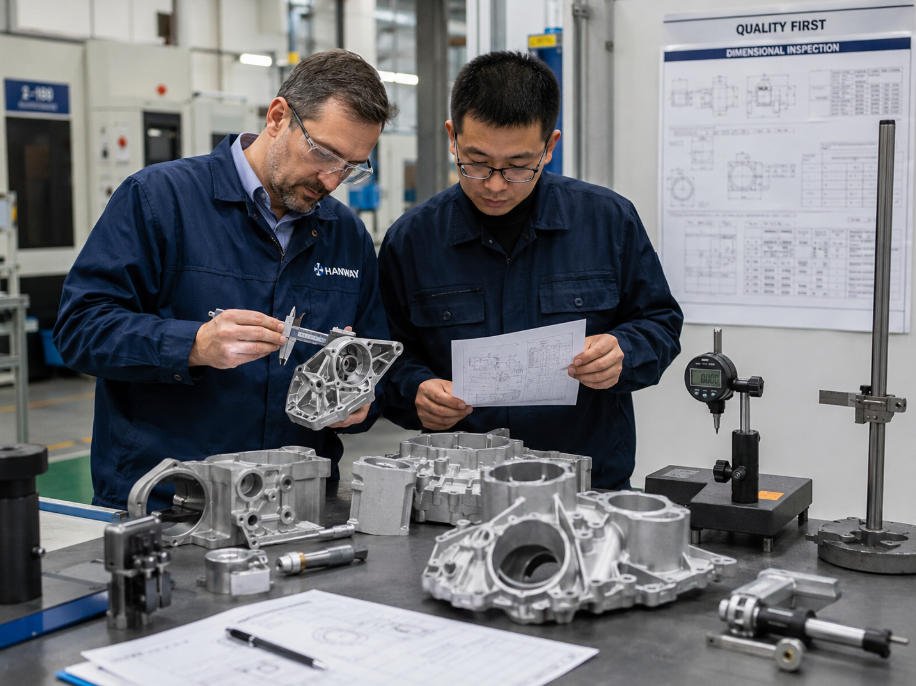

Quality Inspection
A reliable manufacturer should support:
- Dimensional inspection
- CMM measurement
- Material verification
- Quality documentation
Why Choose FSD Precision for Aluminum Die Casting?
FSD Precision provides complete aluminum die casting solutions for global OEM customers.
Our capabilities include:
- Engineering review
- Tooling coordination
- Aluminum die casting production
- CNC post-machining
- Surface finishing
- Quality inspection
- Export support
Our manufacturing process:
CAD Review
↓
DFM Evaluation
↓
Tooling
↓
Die Casting
↓
CNC Machining
↓
Finishing
↓
Inspection
We help customers move from initial designs to reliable production components.
Frequently Asked Questions (FAQ)
What aluminum alloys are commonly used for die casting?
Common aluminum die casting alloys include:
- A380
- ADC12
- A360
The best choice depends on:
- Mechanical requirements
- Application environment
- Surface finish expectations
Why is aluminum popular for die casting?
Aluminum is widely used because it provides:
- Lightweight performance
- Good strength-to-weight ratio
- Thermal performance
- Corrosion resistance
What industries use aluminum die casting parts?
Common industries include:
- Automotive
- Electronics
- Industrial equipment
- Robotics
- Consumer products
Can aluminum die casting parts be CNC machined?
Yes.
Many aluminum die casting components require CNC machining for:
- Precision holes
- Threads
- Assembly surfaces
- Critical functional features
What information is needed for an aluminum die casting quote?
OEM buyers should provide:
- 3D CAD files
- 2D drawings
- Alloy requirements
- Production quantity
- Surface finish requirements
- Critical tolerances
Before requesting a quotation, review our:
Conclusion
Aluminum die casting provides an efficient manufacturing solution for OEM components requiring lightweight structures, thermal performance and repeat production capability.
By selecting the right alloy, optimizing part design and planning CNC post-machining requirements early, manufacturers can achieve stable quality and competitive production costs.
FSD Precision helps global OEM customers develop complete aluminum die casting solutions covering:
- Engineering review
- Tooling coordination
- Die casting production
- CNC machining
- Surface finishing
- Final inspection
